FLENDER FLUDEX® Fluid Coupling
FLENDER FLUDEX® Fluid Coupling
|

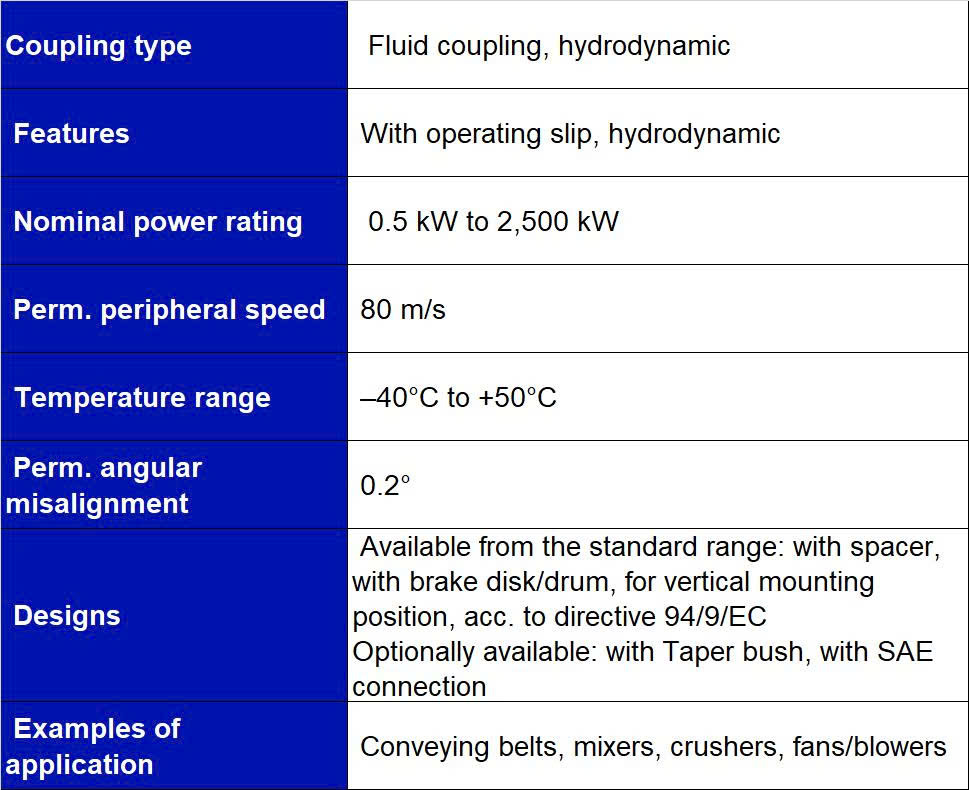

Coupling type |
Fluid coupling, hydrodynamic |
|
Features |
With operating slip, hydrodynamic |
| Nominal power rating | 0.5 kW to 2,500 kW |
| Perm. peripheral speed | 80 m/s |
| Temperature range | –40°C to +50°C |
|
Perm. angular misalignment |
0.2° |
| Designs |
Available from the standard range: with spacer, with brake disk/drum, for vertical mounting position, acc. to directive 94/9/EC Optionally available: with Taper bush, with SAE connection |
|
Examples of application |
Conveying belts, mixers, crushers, fans/blowers |
