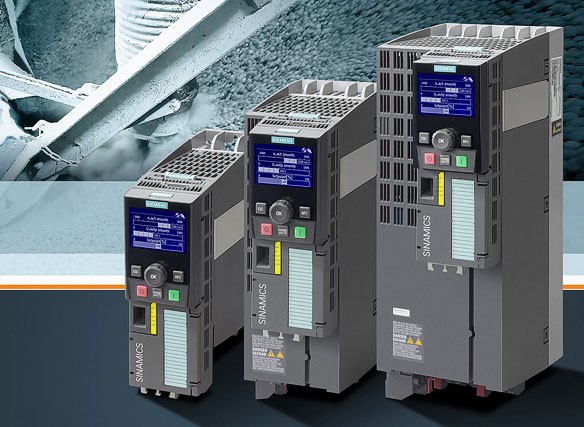

SINAMICS G120 (STANDARD INVERTER)
SINAMICS G120 (STANDARD INVERTER)
Multifunctional, combinable and safety Integrated
Highlight
• High degree of flexibility and combinability
• Higher-level, standard safety concept
• Wide range of power ratings
SINAMICS G120 (STANDARD INVERTER)
Multifunctional, combinable and safety Integrated
Highlight
• High degree of flexibility and combinability
• Higher-level, standard safety concept
• Wide range of power ratings
Applications:
- Pumping/ventilating/compressing
- Moving
- Processing
- Positioning
Technical specifications:
| Format | Modular blocksize chassis unit, modular design (Power Module, Control Unit, Commissioning Options) |
| Drive Concept | AC/AC |
| Degree of Protection | IP20/UL open type |
| Supply Voltage/ Power kW (hp) | |
| 1AC/3AC 200...240V | 0.55...4kW (0.75...5hp), Power Module PM240-2 |
| 3AC 200...240V | 5.5...55kW (7.5...60hp), Power Module PM240-2 |
| 3AC 380...480V | 0.55...250kW (0.75...400hp), Power Module PM240-2 |
| 3AC 380...480V | 7.5...90kW (10...125hp), Power Module PM250 |
| 3AC 500...690V | 11...250kW (10...400 hp at 600V) PM240-2 |
| Control Unit | Control Unit CU230-P, CU 240E-2, CU 240E-2 F, CU250S-2 |
| Energy Recovery | In conjunction with PM250 Power Modules |
| Control Modes | V/f (Linear, Square law, FCC, ECO), vector control with and without endcoder (VC, SLVC) |
| Ambient Temperature | -10oC to 40oC without derating/to 60oC with derating |
| Line Filter |
With integrated line filter for environments according to EN 61800-3 Category C3/C2 Without intgeted line fliter for invironments according to EN 61800-3 Category C4 |
| Braking Chopper | Integrated braking chopper for PM240-2 Power Modules |
| Safety Function | STO, SS1, SBC SLS, SDI, SSM |
| Communication | PROFINET, PROFIBUS DP, EtherNet/IP, USS/ Modbus RTU, CANopen, PROFIsafe |
| TIA Portal Connected | Yes |
| Commissioning Tools | BOP-2, IOP-2, G120 Smart Access Module, STARTER, SINAMICS Startdriver |
| Controller | SIMATIC ET 200, SIMATIC S7-1500, SIMATIC PCS 7 |
